Stand alone / modular
+3º C / +7º C
Automatic
3 (25ºC 60% RH)
Interior LED
Lift-up glass kit (shelf is optional)
Lift-down glass kit (shelf is optional)

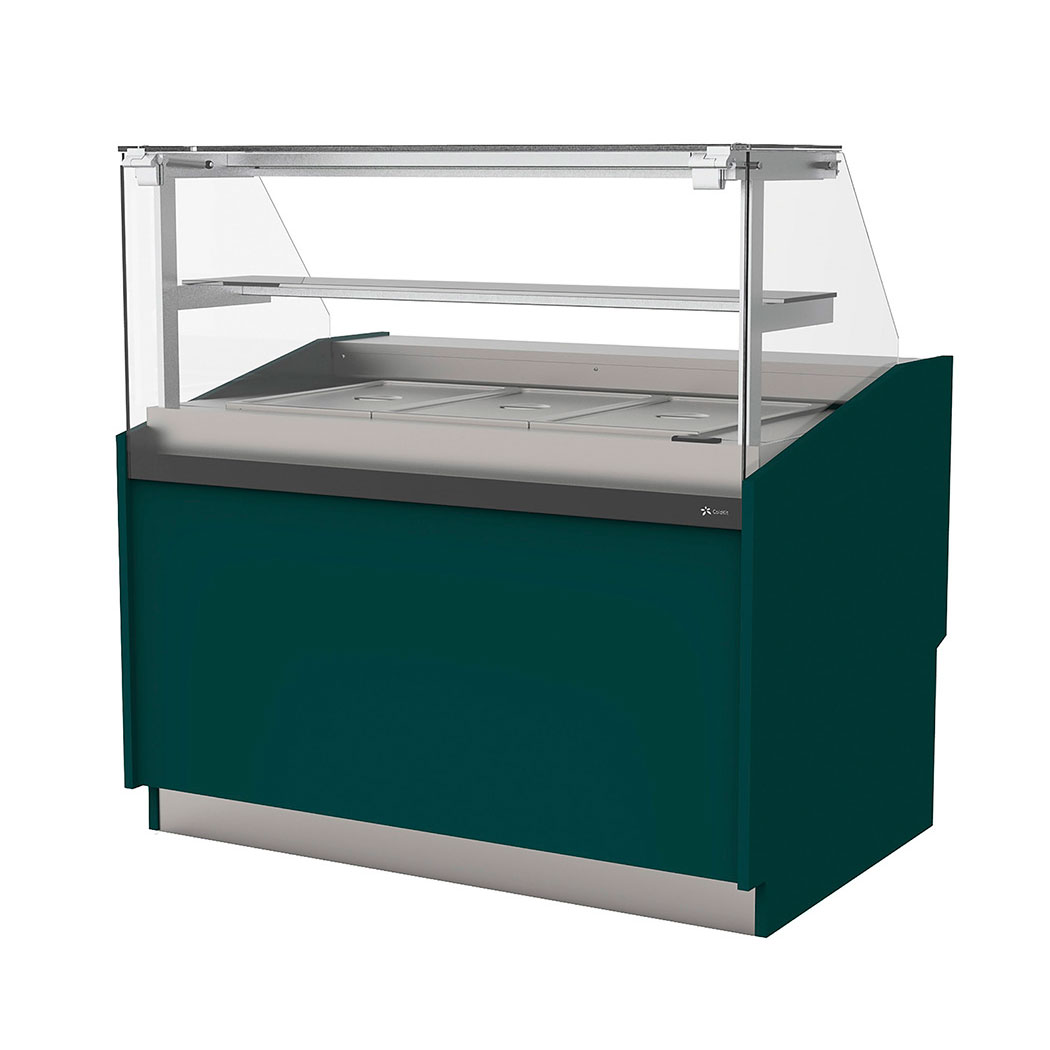

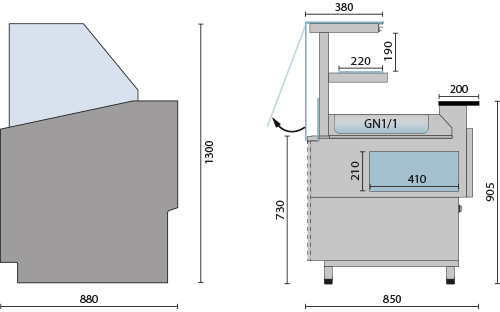

High glass lift-up display case

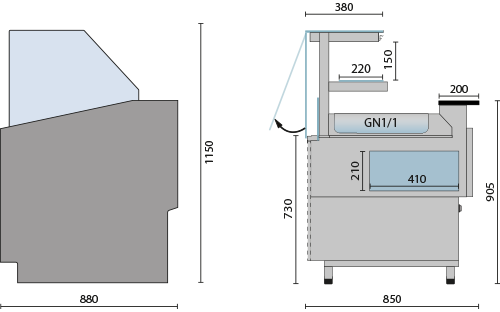

Low glass lift-up display case

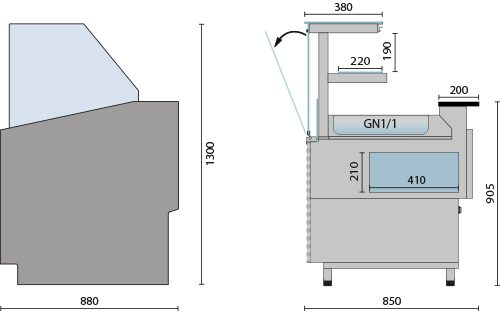

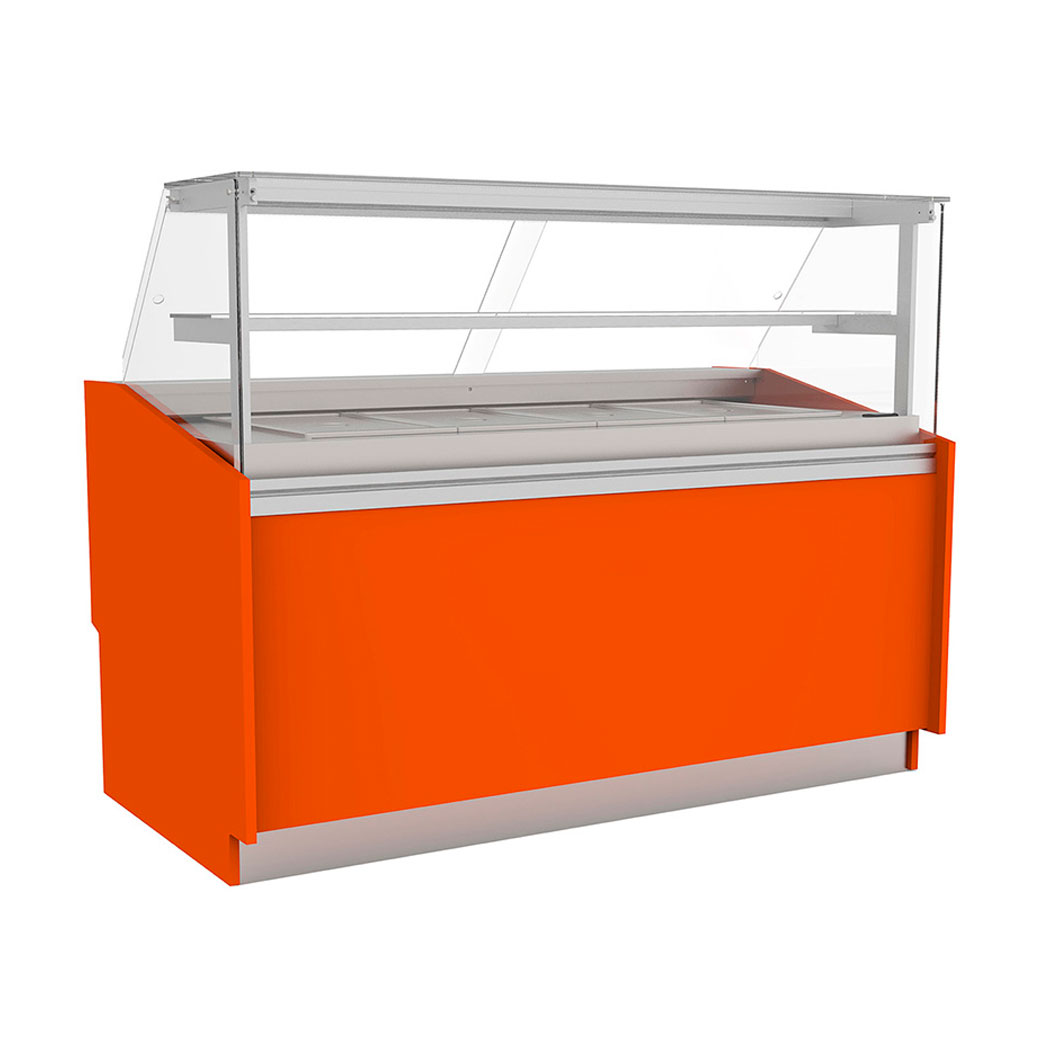

High glass lift-down display case

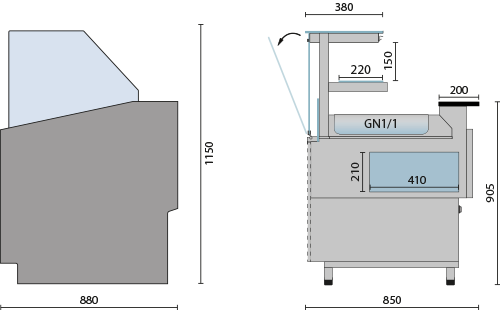

Low glass lift-down display case
Modelo | Straight low glass Lift-Down and Lift-up X x Y x Z *** (without side panels) mm |
Straight high glass Lift-Down and Lift-up X x Y x Z *** (without side panels) mm |
Cap. G/N | Refrigerated deck whithout shelf m2 |
Doors | Electric Power W |
Power Supply V/Hz |
Cooling capacity * W |
T ** ºC |
VCERSL125 | 1250 x 850 x 1150 | 1250 x 850 x 1300 | 3 | 0,5 | 1 | 585 | 230/50 | 585 | +3/+10 |
VCERSL165 | 1650 x 850 x 1150 | 1650 x 850 x 1300 | 4 | 0,66 | 2 | 585 | 230/50 | 585 | +3/+10 |
GN Containers not included. Prepared for GN 1/1 containers measuring 325 x 530 x 100 mm.
To change the power supply, ask us.
* Evap Temp. = -10ºC, Amb. Temp. = +32ºC
** Test EN ISO 23953
*** Thickness of lacquered side plate (each one): 2.0 mm
Thickness of raw MDF/lacquered side panel (each one): 20.0 mm
Thickness of formica side panel (each one): 20.0 mm
